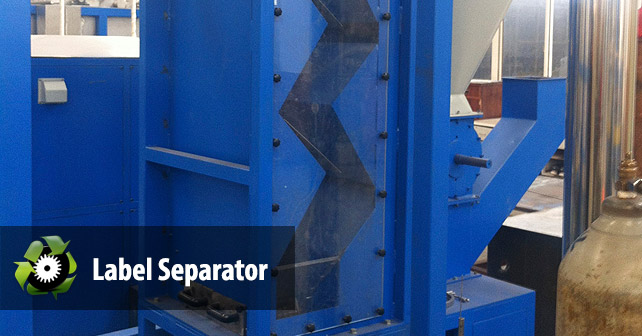

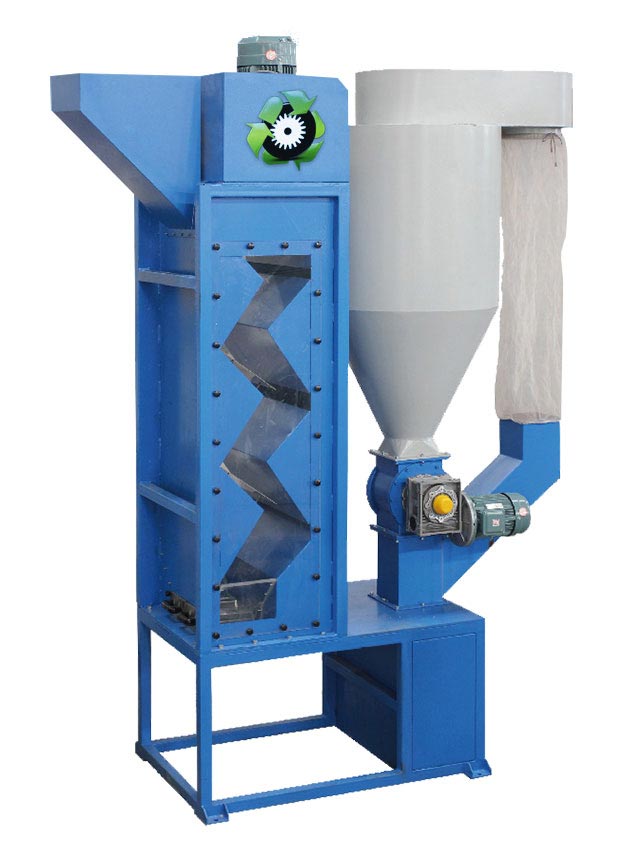

Label Separator


Product Description

Placed after the granulator in our PET washing line, the label separator removes PP/PE/PVC labels from PET flakes.

As whole plastic bottles are cut into small pieces in the granulator, labels made from plastic film are often mixed in. The label separator does an excellent job of removing these labels via the use of a column of raising air. As the material mixes and is blown upwards, the PP / PE films (the lighter material) are blown upwards and are stored in a collection tank while the PET flakes (the heavier material) drop through the bottom and continue onto the next piece of machinery.

Label Separator Specifications

Blower Motor: 5.5 KW
Rotary Valve Motor: 1.5 KW
Rotary Valve Diameter: ⌀270mm
Rotary Valve
Rotating Speed:
50 RPM
Cyclone Separator Volume: 600 L


Additional Images


Place an Order

The lead time for standard equipment is 30 days. For custom orders or complete washing lines, the lead time is between 60 – 90 days. The actual lead time will depend on the complexity of the project as well as the amount of machinery we have in queue at the time of your order.

Contact us to discuss pricing and ordering details. Here is a brief summary of our ordering procedures.
